2-ch non-condensing unidirectional HD-SDI signal with embedded audio over one fiber
Range from 19.4Mb/s to 1.485Gb/s
SMPTE 292M (1.485Gb/s) clock recovery
Support all SMPTE 295M standard, 143Mb/s – 360Mb/s
Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
Output wave length 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
Optional network management system
LED status indicators monitor the critical parameters
Optional network system
Support hot swap
Stand-alone, 1U rack mount and 4U rack mount

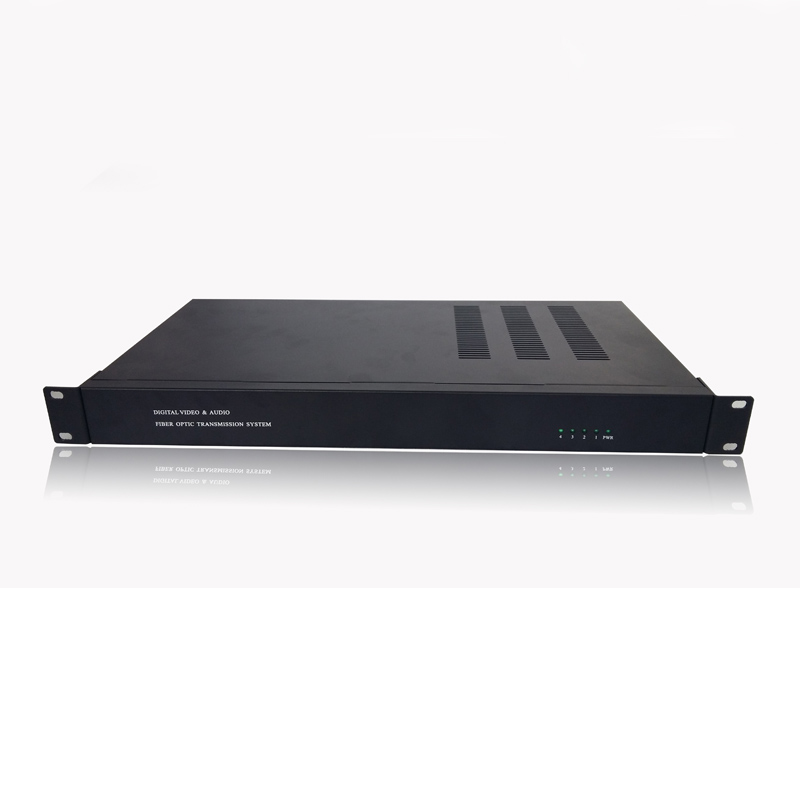

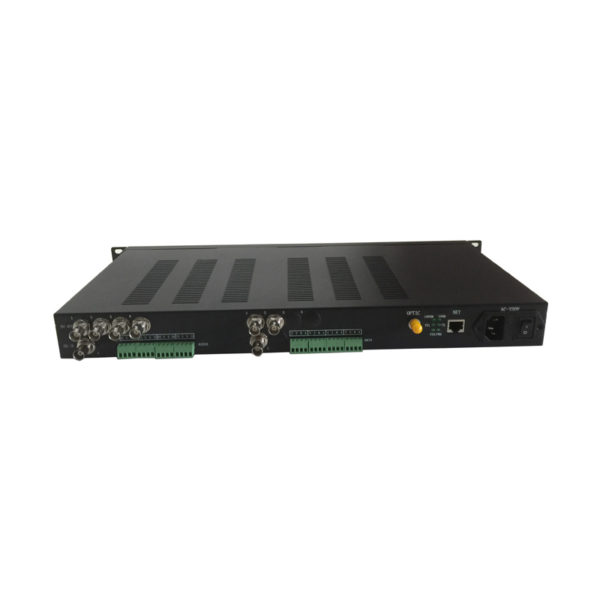

| Fiber Optic Transmitter NWF2062T | |
| Serial TV: | BNC input |
| TV Signal Standards: | SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M,M2S,SMPTE344M, DVB-ASI,DVB-SSI and Other Telecom/ Datacom rate (19.4Mbps -1.485Gbps) |
| Video Input: | 6-Ch Video |
| Return Loss: | >15dB |
| Balance: | 0-150m @ 1.485Gbps |
| Video Connector: | 75Ω BNC |
| Optical Output: | 1 |
| Fiber Type: | Single mode / Multi mode |
| Wave Length: | 1310nm /1550nm |
| Shake: | < 0.2UI |
| Fiber Connector: | FC/PC (SC/PC optional) |
| Physical Benchmarks | |
| Working Temperature: | -40ºC~+75ºC |
| Storage Temperature: | -40ºC~+85ºC |
| External size | 17.3cm × 27.6cm × 4.06cm，2kgs |
| Electrical Benchmarks | |
| Voltage: | 5VDC |
| Power Consumption: | <15W |
| EMI/RFI: | Accord with FCC Part 15 Class A, EU EMC standards |
| MTBF: | 100,000 hours |
| Fiber Optic Receiver NWF2062R | |
| Serial TV: | BNC output(EO/OE) |
| Video Output: | 2-Ch Video |
| Signal level: | 800mV nominal |
| Rise/fall time: | 200ps nominal |
| Overshoot: | < 10% amplitude |
| Return Loss: | >15dB |
| Video Connector: | 75Ω BNC |
| Optical Input: | 1 |
| Fiber Type: | Single mode / Multi mode |
| Wave Length: | 1310nm /1550nm |
| Shake: | < 0.2UI |
| Fiber Connector: | LC/ST/FC |
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
Ordering information
HD-SDI Fiber Optic Transmission
NWF2020-T
2-Ch HD-SDI with embedded audio input /output over one fiber, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
NWF2020-R
1-Ch HD-SDI with embedded audio output over one fiber, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
