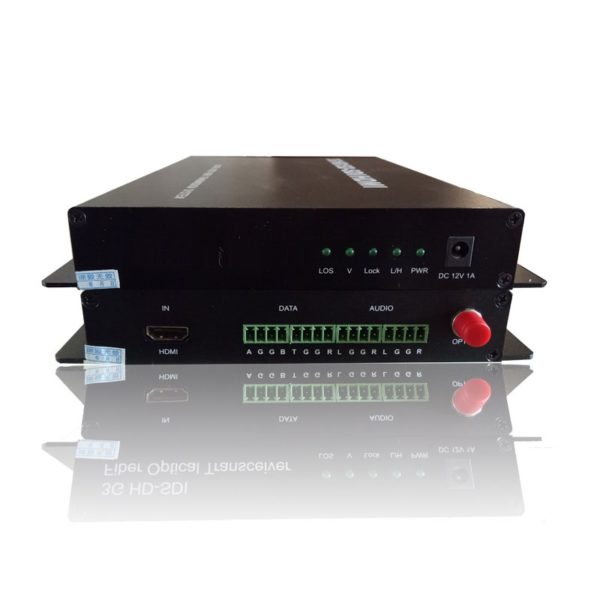

NWF4010H HDMI optic fiber transmission

A fiber optic transceiver is a device that uses fiber optical technology to send and receive data. The transceiver has electronic components to condition and encode/decode data into light pulses and then send them to the other end as electrical signals. To send data as light, it makes use of a light source, which is controlled by the electronic parts, and to receive light pulses, it makes use of a photodiode semiconductor.
The NWF2011 could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one fiber, single mode or multimode. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI loop through; the receiver features two re-clocked and equalized SDI outputs
