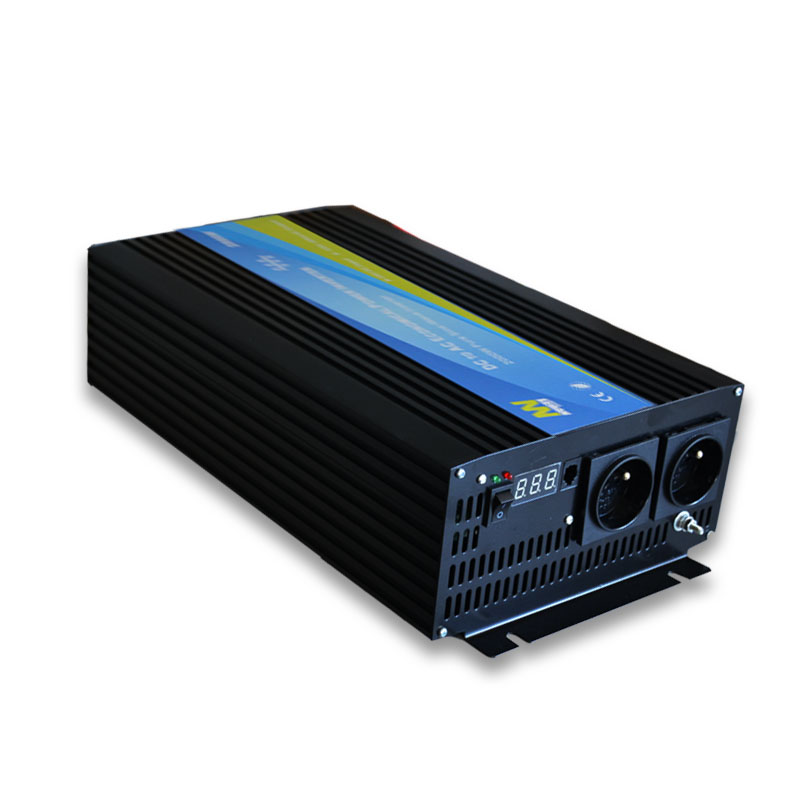

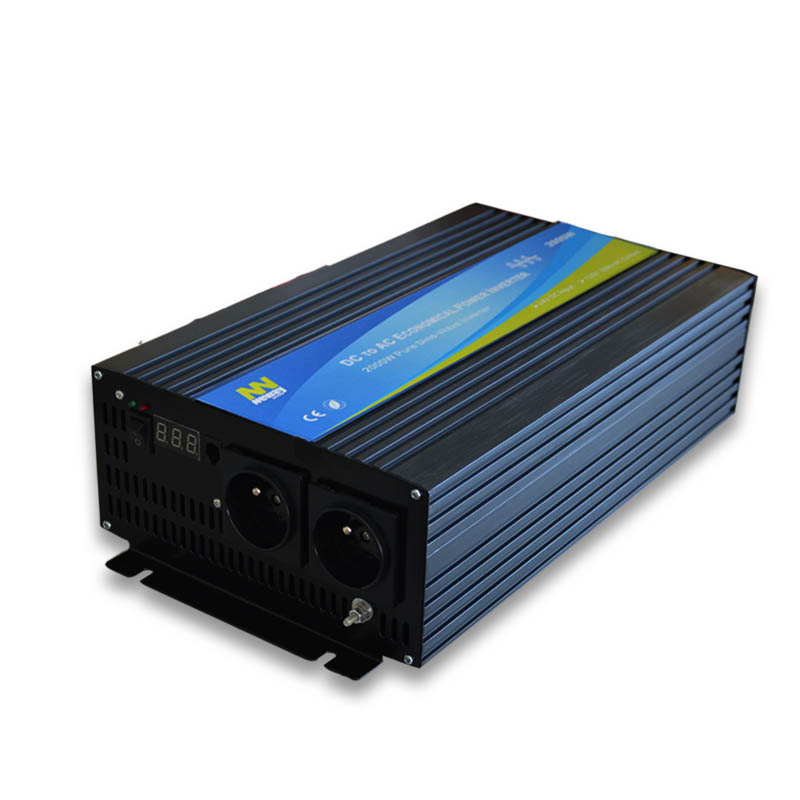

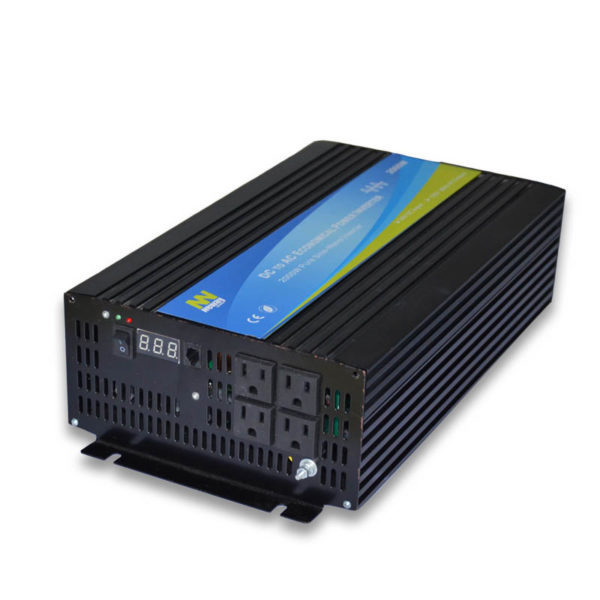

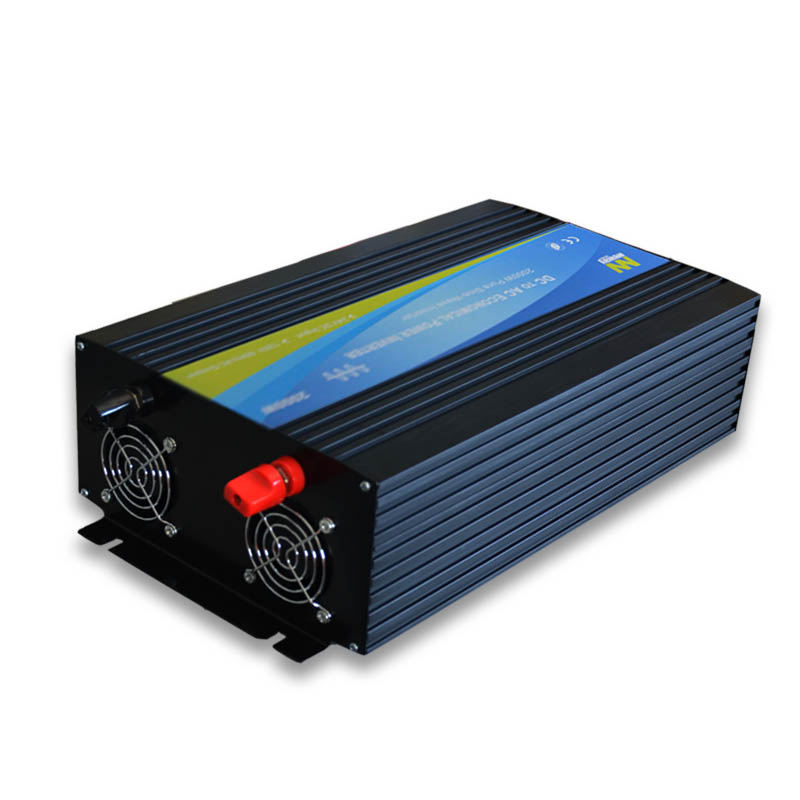

NWE3000 2200W Pure Sine Wave Inverter

3000VA/2400W Pure Sine Wave Inverter
NEWAY Economical Series(NWE) inverter will be ideal for running nonlinear loads (such as variable speed motors and small compressors and air conditioner). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer server, small fridge and so on.

The advantage of our PSW inverter is powerful loading capacity than the normal, especially when it loads fridge, pump, air conditioner and so on.

  • 3000VA/2200W continuous power
  • 6000VA/4400W surge power
  • 12/24/48V DC input
  • 220-230V AC output
  • Pure sine wave •Isolated ground & neutral
  • Input and output isolated
  • Full protection: Input protection: Reverse polarity / Over voltage / Low battery alarm and shutdown Output protection: Short circuit / Overload / Over temperature
  • Ideal for powering inductive loads such as motor, and other sensitive loads, medical equipment and solar systems.
  • 1 year warranty
  • CE,Rohs & IEC approved
Model No. NWE3000
Rated Power 2200W
3000VA
Surge Power 4400W
Input Voltage 12V/24V/48V DC
Output Voltage 100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3%
Frequency 50 / 60Hz +/- 0.3Hz
Output Waveform Pure Sine Wave (THD < 3%)
Efficiency 88% for 12V; 92% for 24V;93% for 48V
No Load Current Draw(A) 0.7(12V), 0.4(24V), 0.3(48V)
Input Voltage Regulation 11-15VDC / 22-30VDC / 44-60VDC
LED Indicator Red LED indicates failure, Green LED indicates normal
Digital Display Alternate shows the DC input voltage and AC loading % of maximum load
Protection Overload, Short Circuit, Reverse Polarity (Fuse),  Over Temperature, Low battery, High battery
Operating Temperature Range 0 – 40℃
Storage Temperature Range -30℃ to 70℃
Cooling Temperature control the cooling fan
Dimensions(mm) 350x210x130
Weight( kgs) 5.5kgs
Carton Size 490*290*195mm,1pc/ctn
