Description
应用场景 Application area
> 储能系统、控制系统、报警系统、电力系统、数据库
> Energy storage system, control system, alarm system, power system, database
> 应急照明系统、备用电力电源、UPS
> Emergency lighting system, emergency power supply, UPS
> 电信设备、通讯设备、消防系统、安全防卫系统、发电站
> Telecommunication, communication, fire fighting system

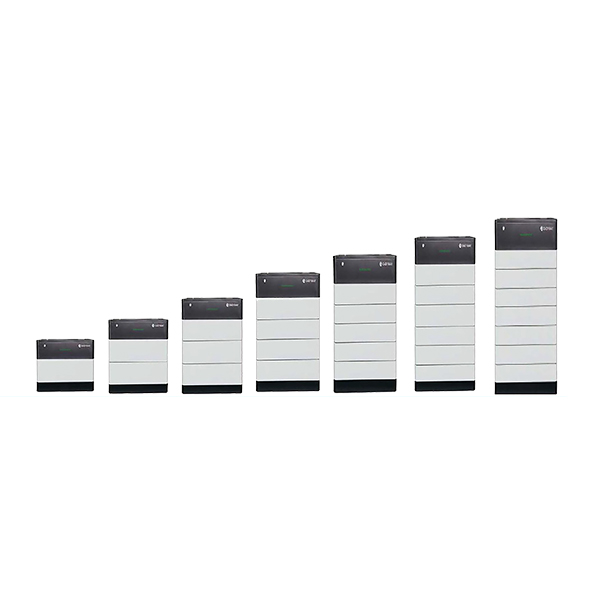

Model
UNIV-LV
ST 5000UNIV-LV
ST 10KUNIV-LV
ST 14.6KUNIV-LV
ST 19.5KUNIV-LV
ST 24.4KUNIV-LV
ST 29.3KUNIV-LV
ST 34.2K
Nominal Voltage(dc)
48V
48V
48V
48V
48V
48V
48V
Nominal Capacity
102AH
204AH
306AH
408AH
510AH
612AH
714AH
Total Energy
4.89kWh
9.79
14.6
19.58
24.48
29.37
34.27
Usable Energy
4.68kWh
9.4
14
18.8
23.5
28.2
32.9
Dimention(mm)
650*340*190
650*340*380
650*340*570
650*340*760
650*340*950
650*340*1140
650*340*1330
Weight
49 kgs
95 kgs
141 kgs
187 kgs
233 kgs
279kgs
325 kgs
Nominal Charge/Discharge Power(A)
51A
102A
153A
175A
175A
175A
175A
Nominal Power
2.4kW
4.9kW
7.3kW
8.4kW
8.4kW
8.4kW
8.4kW
Efficiency(%)
90
Cell Type
LFP(LiFePO4)
Humudity
0~95%
Operation Condition
Indoor
Operation Temperature(℃)
Charge
0 ~ 50
Discharge
-20 ~ 60
Installation
Free Standing/Ground Installation
Protection Grade
IP54
Cooling Type
Natural cooling
Design Life
10+ years
Communication
CAN/ RS485
Protection Mode
Triple Hardware Protection
Battery Protection
Over-current/Over-voltage/Short circuit/Low voltage
Safety
IEC62619, IEC62040, CEC, CE, RCM
Transportation
UN38.3
