中文应用场景 Application area
> 储能系统、控制系统、报警系统、电力系统、数据库
> Energy storage system, control system, alarm system, power system, database
> 应急照明系统、备用电力电源、UPS
> Emergency lighting system, emergency power supply, UPS
> 电信设备、通讯设备、消防系统、安全防卫系统、发电站
> Telecommunication, communication, fire fighting system
Model
UNIV-2.4kWh/LV(R)
UNIV-4.8kWh/LV(R)
UNIV-5.22kWh/LV(R)
UNIV-10kWh/LV(R)
UNIV-17.4kWh/LV(R)
Total Energy
2.4kWh
4.8kWh
5.22kWh
9.89kWh
17.4kWh
Usable Energy(DC)
2.4kWh
4.6kWh
5kWh
9.6kWh
16.9kWh
Voltage
22.5V-27.6V
45-54.8Vd.c
48-58.4Vd.c
45-54.8Vd.c
48-58.4Vd.c
Nominal Voltage
25.6Vd.c
48Vd.c
51.2Vd.c
48 Vd.c
51.2Vd.c
Rated Capacity
100Ah
102Ah
102Ah
206Ah
340Ah
Efficiency
>97%
>97%
>97%
>97%
>97%
Nominal Current
24A
48A
52A
103A
170A
Nominal Charge Power
1.2kW
2.3kW
2.6kW
4.9kW
5.2kW
Nominal Discharge Power
1.2kW
2.3kW
2.6kW
4.9kW
10.2kW
Peak Power(discharge)
2kW for 3sec
4.8kW for 3sec
4kW for 3sec
8kW for 3sec
14.3kW for 3sec
Max numbers of parallel connection
8P
16P
16P
16P
20P
Dimension(mm)
442*133*420mm
442*135*420mm
442*135*420mm
442*223*590mm
483*223*820mm
Weight
26 kg
45kg
48kg
78kg
124kg
Operation Condition
Indoor
Operation Temperature
Charge
0℃ ~ 50℃
Discharge
-20℃ ~ 60℃
Color
Black
Humidity
＜60%(No condensed water)
Over Voltage Category
Ⅱ
Cooling Type
Natural cooling
Case Material
Metal
Installation
Wall mounting/Ground Installation
IP Rating
IP 20
Protective Class
I
Warranty
10 years
Life Span
>15 years
Communication
CAN/ RS485
Protection Mode
Dual hardware protection
Battery Protection
Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Safety
Cell UL 1973, CE/TUV
Hazardous Material Classification
9
Transportation
UN38.3

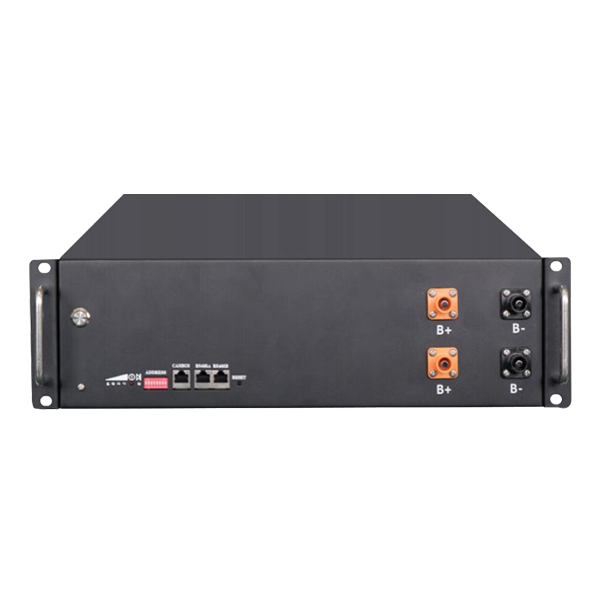

100Ah(25.6V)/ 200Ah(48V)/ 300Ah(51.2V) Rack-Mounted Lithium Battery
The rack-mounted lithium batteries are an excellent choice for those looking for a reliable and cost-effective solution to high-performance backup power or energy storage needs. The scalability of these batteries is impressive, allowing users to expand their energy storage capacity by adding more battery modules.
These batteries come equipped with advanced monitoring and control systems that provide real-time data on battery performance,temperature, and other critical parameters, ensuring optimal battery operation and extending its lifespan.
These batteries are versatile and can be used in various applications, including backup power for data centers, telecommunications equipment, and renewable energy systems. With the UNIV rack-mounted lithium batteries, you can be sure that your energy storage needs are well taken care of, giving you peace of mind and uninterrupted power supply.
