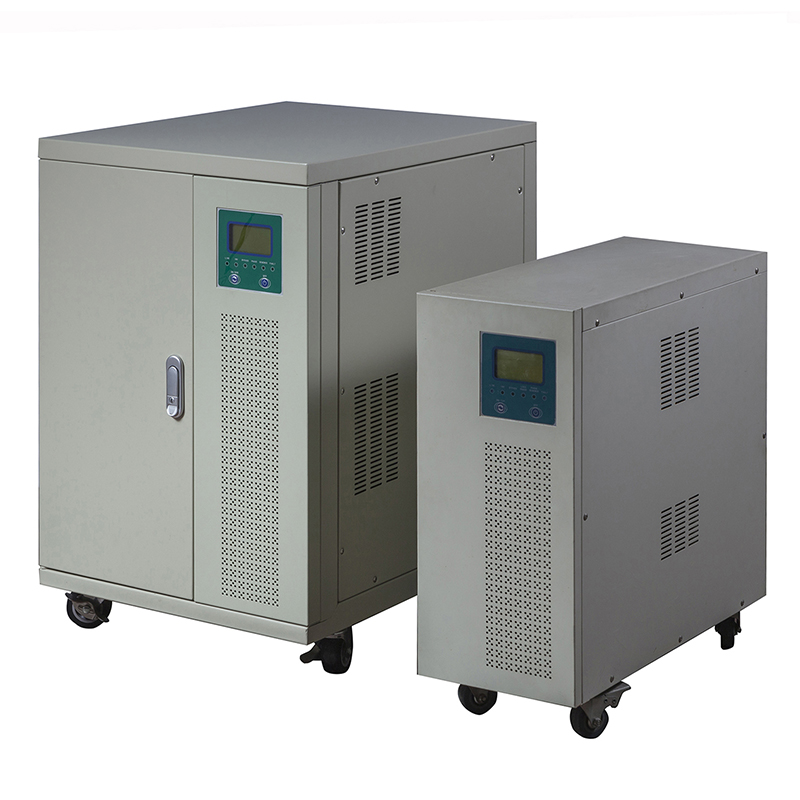

NWP3K 3KW 3 Phase Inverter China

NEWAY Power Series(NWP) inverter will be ideal for running three phase nonlinear loads (such as variable speed motors and small compressors and air conditioner). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves and cordless drill battery chargers.The digital display will guide you to monitor your battery capacity and power consumption.

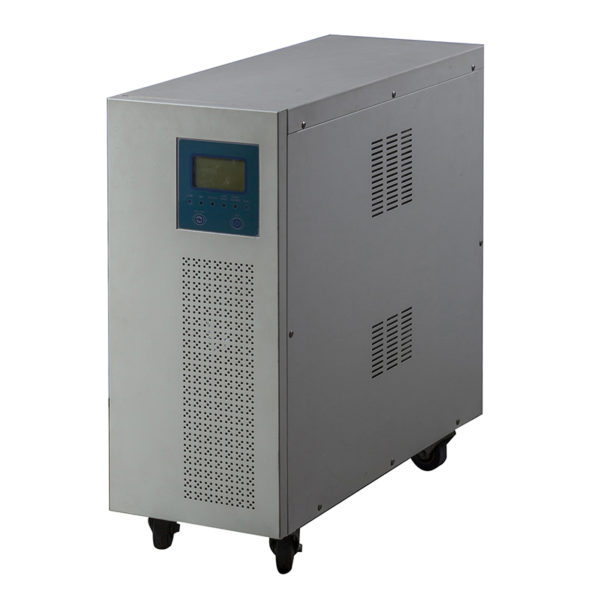

3KW Three Phase Power Inverter-Low Frequency Inverter

❖ Low frequency design
❖ Output frequency:50 / 60Hz
❖ Built in advance microprocessor to make friendly interface with user
❖ Standby function to save energy
❖ Capable of driving highly reactive & capacitive loads at start moment.
❖ Hardwire AC connection for three phase four wire
❖ LCD digital display for the DC input, AC output voltage and output current
❖ Temperature controlled the cooling fan.
❖ 2 LED indicators show operation status

❖ High efficiency to 85%
❖ Can load both single phase or three phase loading
❖ Three Phase Four Wire,each phase no exceed 2000W

Protection:
Input high voltage and Input low voltage protection
Low battery alarm
Over temperature protection
Over load protection
Short Circuit protection
Reverse polarity protection
Lack of phase protection

Model No. NWP3KL
Rated Power 3KW
4KVA
Surge Power 6KW/8KVA
Input Voltage 48V/96VDC
Output Phase Voltage 208V ± 10% or 380 ± 5%
Output Line Voltage 100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3%
Frequency 50 / 60Hz +/- 1%
Output Waveform Pure Sine Wave (THD < 3%)
Efficiency 85%
Input Voltage Regulation 42-65VDC /84-130VDC
LED Indicator Red LED indicates failure, Green LED indicates normal
Protection Overload, Short Circuit, Reverse Polarity (Fuse), Over Temperature, Low battery, High battery
AC Charge Current 8A
Operating Temperature Range 0℃– 40℃
Storage Temperature Range -15℃– 50℃
Cooling Temperature control the cooling fan
Dimensions(mm) 560X230X570
Package 670X330X680mm  Net Weight:40.7kgs Gross Weight:51kgs  1pc/Wooden case


Notice:If the load is forward/reverse direction motor, it should be connected frequency controller between the inverter and motor.
