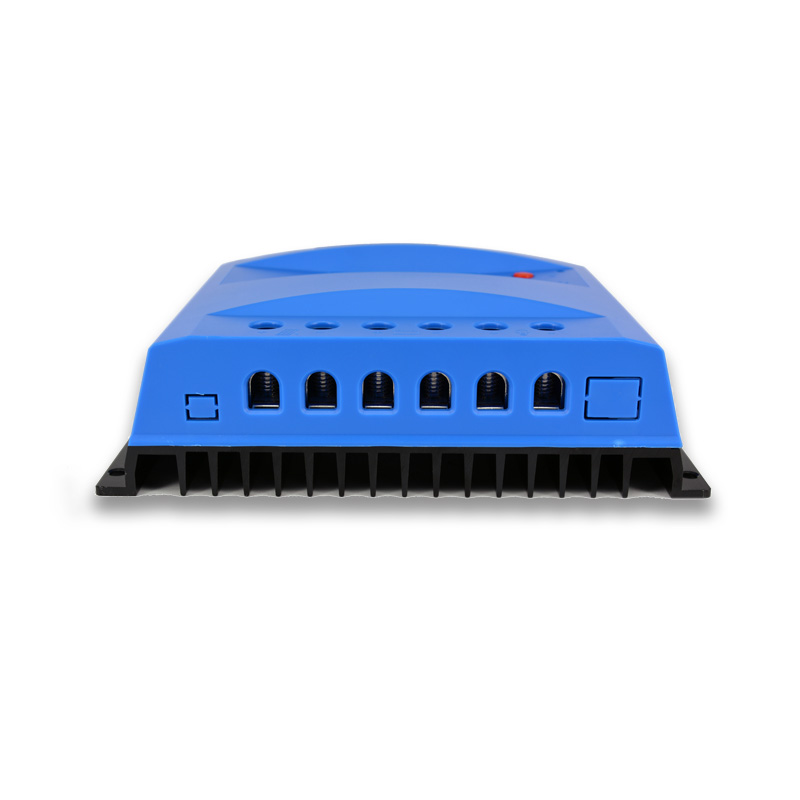

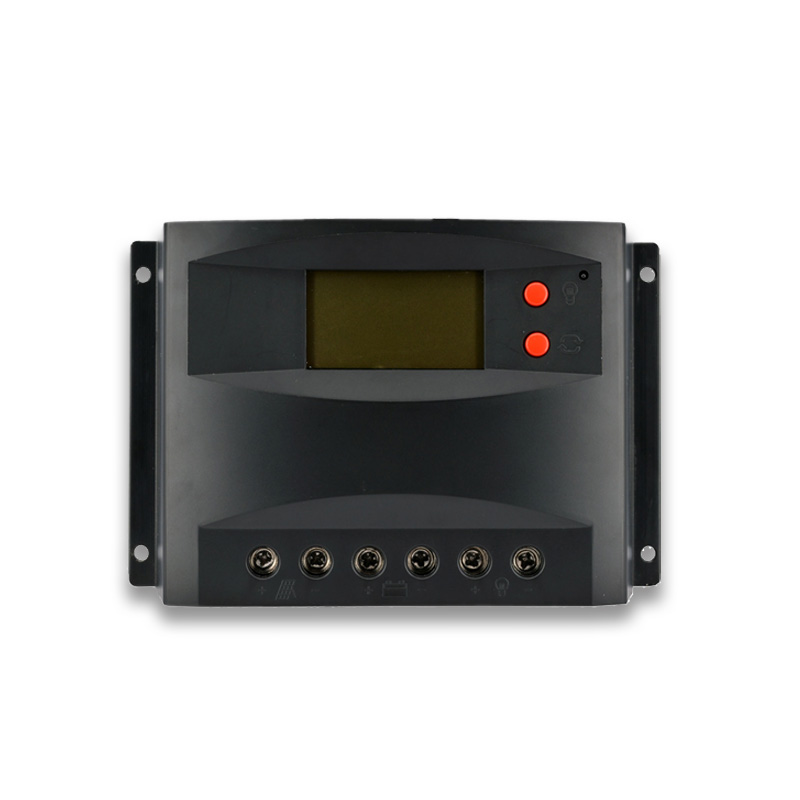

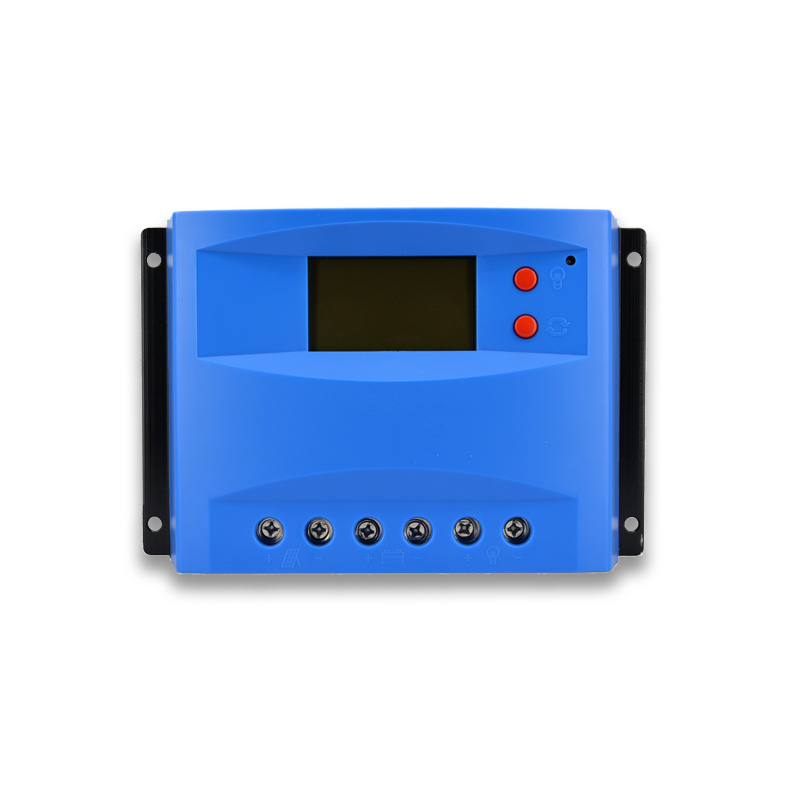

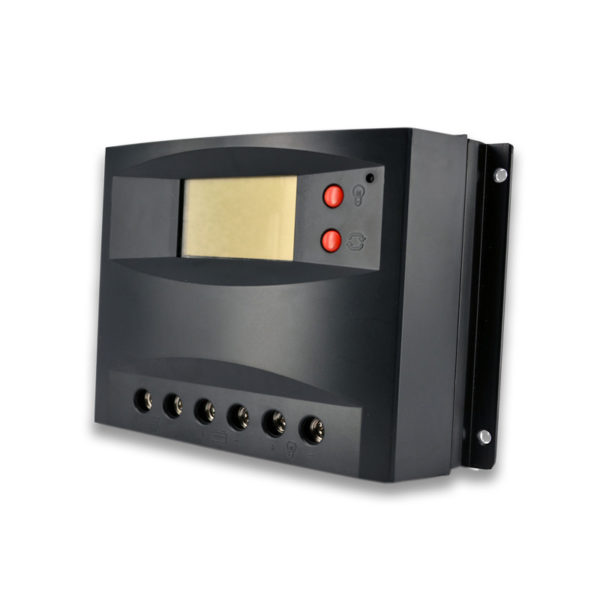

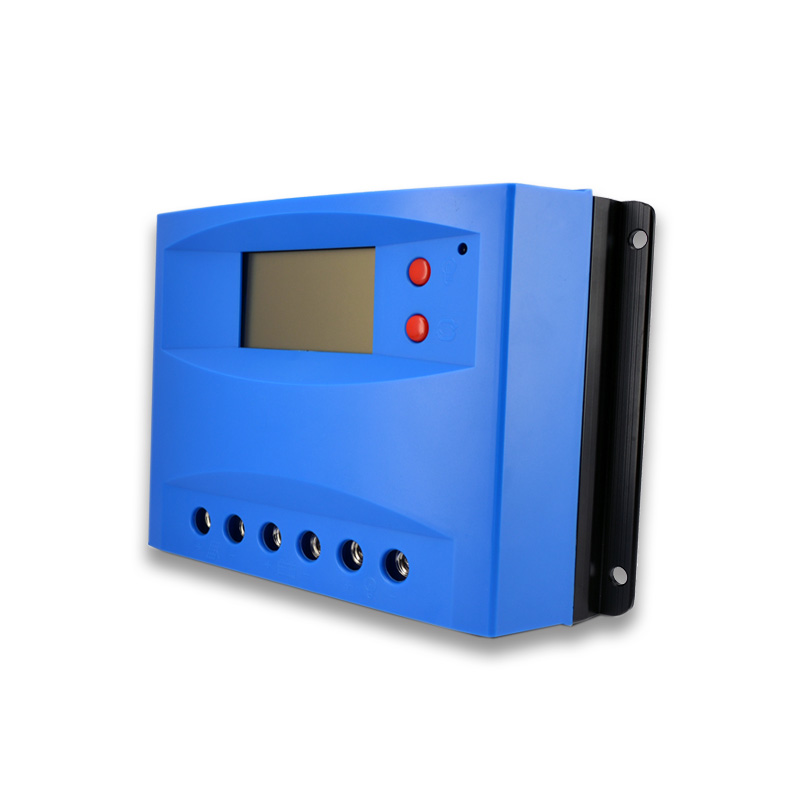

NS50 50A Solar Charger Controller
NS series solar charge controller is the LATEST design. It offers convenient LCD display, optimized structure design, advanced digital technique and high quality.The multiple load work modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamps etc.
Various control parameters can be flexibly set ,fully meet your various application requirements.
Vivid LCD graphic symbols
Simple button operation
Automatic identification of system voltage level
Intelligent PWM charging mode
Adjustable charge-discharge protection
Automatic temperature compensation
Settable operation mode of load
Battery reverse-discharge protection
Battery low voltage disconnection(LVD)
Battery reverse connection protection
Overcurrent protection
| Model | NS50D | |
| Rated Current | 50A | |
| System Voltage | 12V/24V Auto | |
| PV open circuit voltage | <50V | |
| Float charge voltage | 13.8V/27.6V | |
| LVD | 10.8V/21.6V | |
| LVR | 12.6V/25.2V | |
| Boost voltage | Sealed 14.4V/28.8V | Duration 2 hrs |
| GEL 14.2V/28.4V | ||
| Flooded 14.6V/29.2V | ||
| HVD | 16.0V/32.0V | |
| HVR | 15.5V/31.0V | |
| No load loss | 12mA(12V),14mA(24V) | |
| Charge/Discharge voltage drop | <0.17V/<0.10V | |
| USB output | No | |
| Specification of cable | ≤25mm² | |
| Working temperature | —10℃ ~ 50℃ | |
| Storage temperature | —20℃ ~ 60℃ | |
| Humidity | 10%~90%，NC | |
| Dimension | 188*125*48.5mm | |
| Weight | 562g | |
| QTY | 24PCS/CTN | |
| G.W. | 14KGS | |
| Carton Dimension | 535mm*415mm*190mm | |
