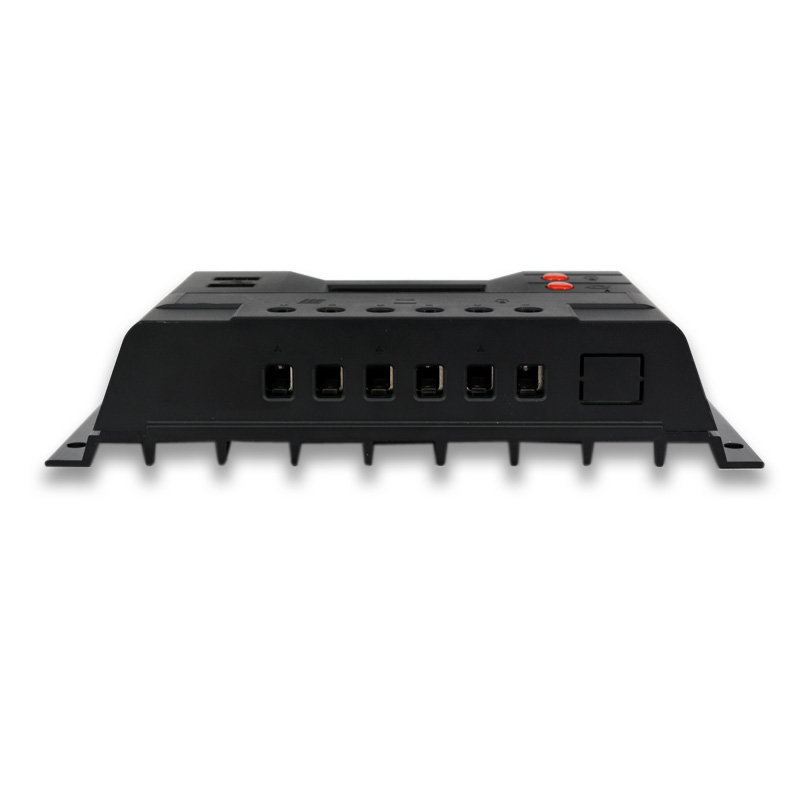

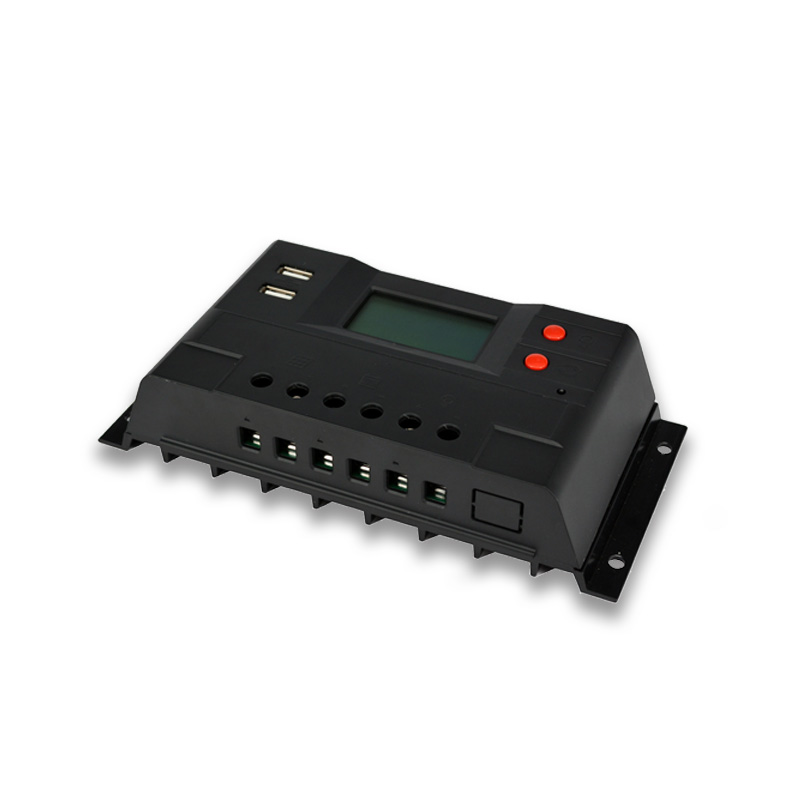

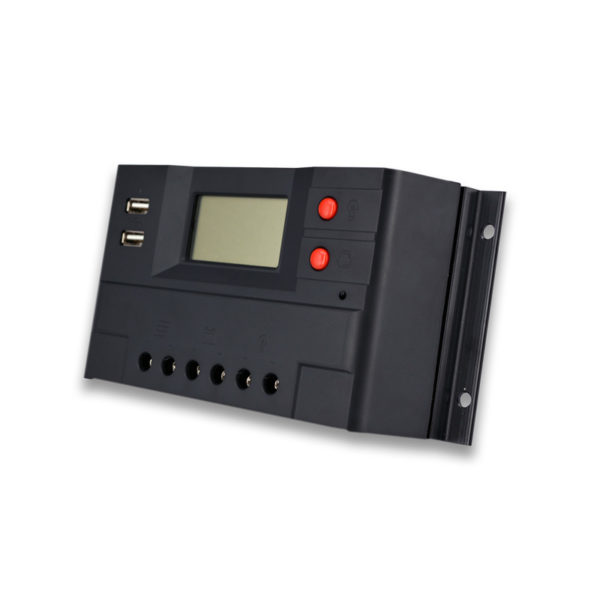

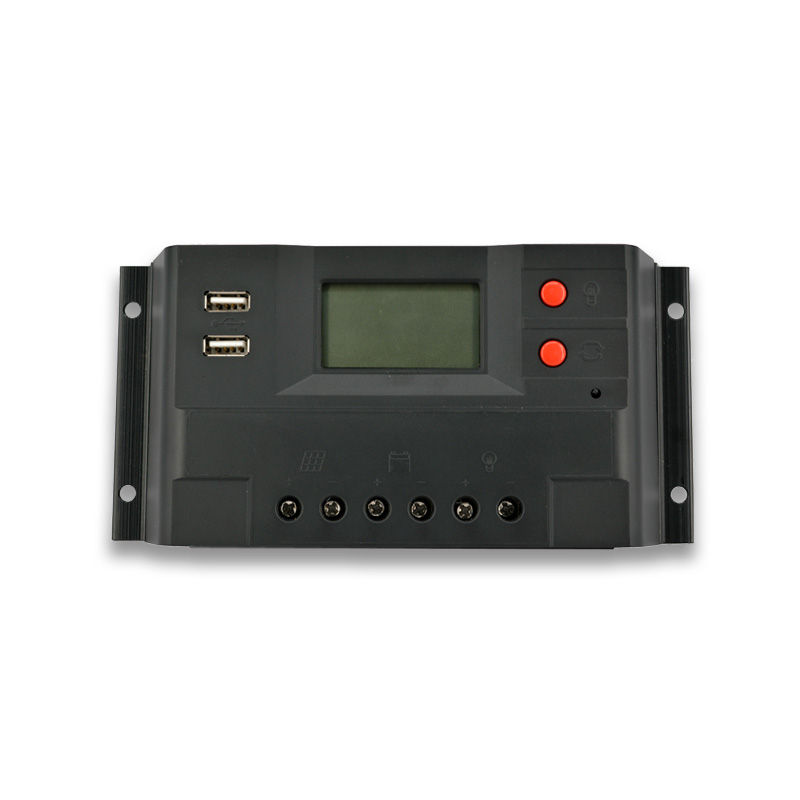

NS30 30A Solar Charger Controller
NS series solar charge controller is the LATEST design. It offers convenient LED display, optimized structure design, advanced digital technique and high quality.The multiple load work modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamps etc.
PWM charging
Use MOSFET as electronic switch

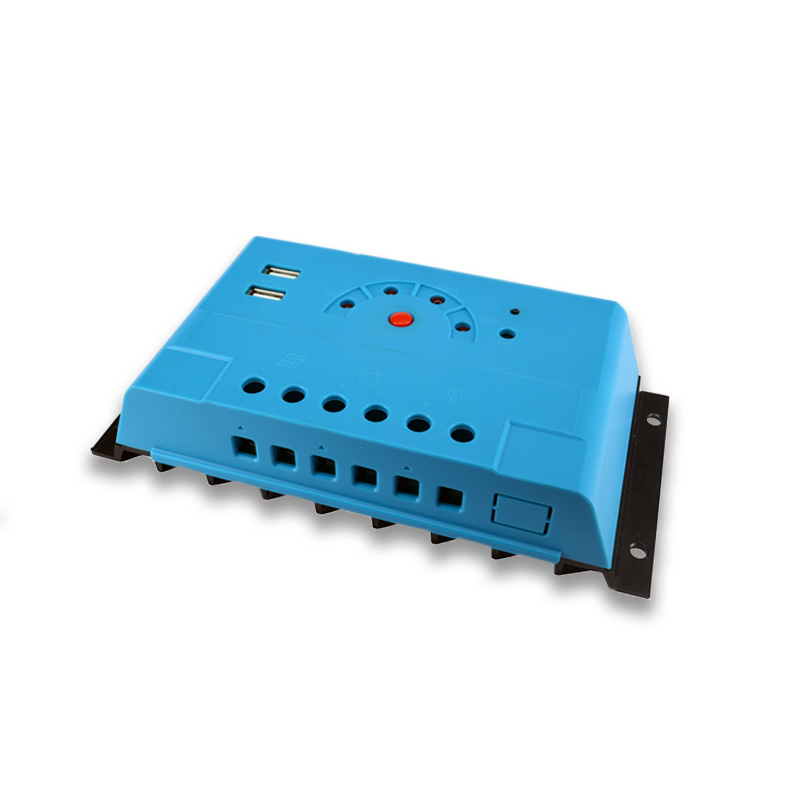

Intuitive LED indicators showing battery voltage and charging status
Manual control the output of the load
Industrial grade design
USB output 5VDC

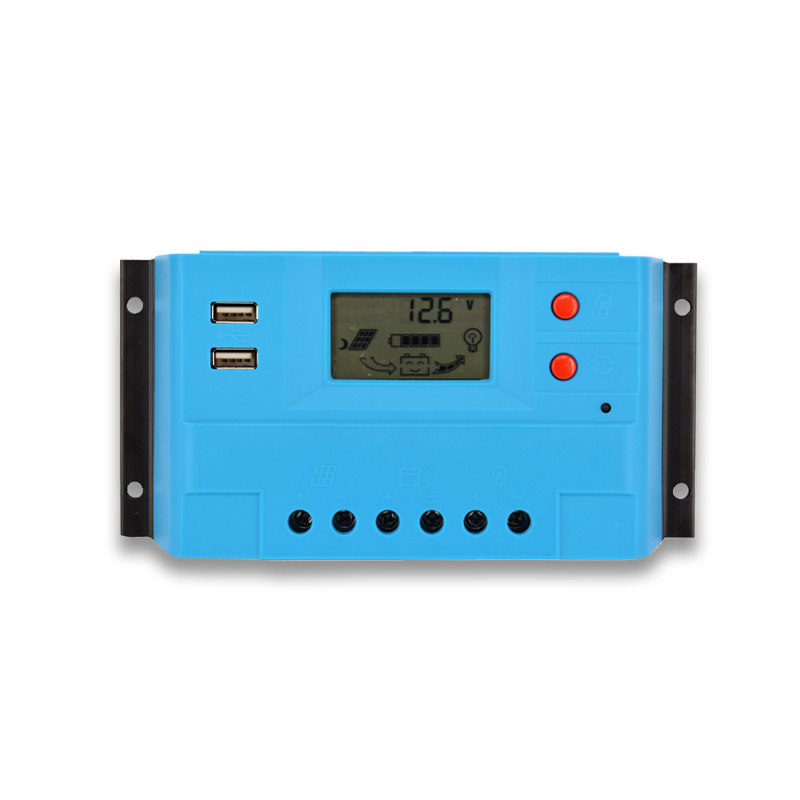

LCD display is optional for this item.
Electronic protections:
Battery over charge protection
Battery over discharge protection
Over load protection
Reverse current protection at night
Reverse connection protection of battery
Overheat protection and short circuit protection of USB output
| Model | NS30D | |
| Rated Current | 30A | |
| System Voltage | 12V/24V Auto | |
| PV open circuit voltage | <50V | |
| Float charge voltage | 13.8V/27.6V | |
| LVD | 10.8V/21.6V | |
| LVR | 12.6V/25.2V | |
| Boost voltage | Sealed 14.4V/28.8V | Duration 2 hrs |
| GEL 14.2V/28.4V | ||
| Flooded 14.6V/29.2V | ||
| HVD | 16.0V/32.0V | |
| HVR | 15.5V/31.0V | |
| No load loss | 12mA(12V),14mA(24V) | |
| Charge/Discharge voltage drop | <0.3V/<0.18V | |
| USB output | 5V/1A | |
| Specification of cable | ≤16mm² | |
| Working temperature | —10℃ ~ 50℃ | |
| Storage temperature | —20℃ ~ 60℃ | |
| Humidity | 10%~90%，NC | |
| Dimension | 160mm×95mm×45mm | |
| Weight | 400g | |
| QTY | 30PCS/CTN | |
| G.W. | 12.5KGS | |
| Carton Dimension | 515mm*360mm*165mm | |
